Automatic Neck Attach Machine

AUTOMATIC COLLAR ATTACHING MACHINE

XXXXXXXXXXX

Item No :
SM-01B
Sewing perimeter :
20-140cm
Sewing range :
5000-7000rpm
Neckline width :
1-5cm

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Auto Men's Boxer Sport Pants Babywear Circular Bottom Hemming Machine
Read More
Auto t-shirt/polo shirt circular bottom hemming machine - Adult Edition
Read More

Product Details

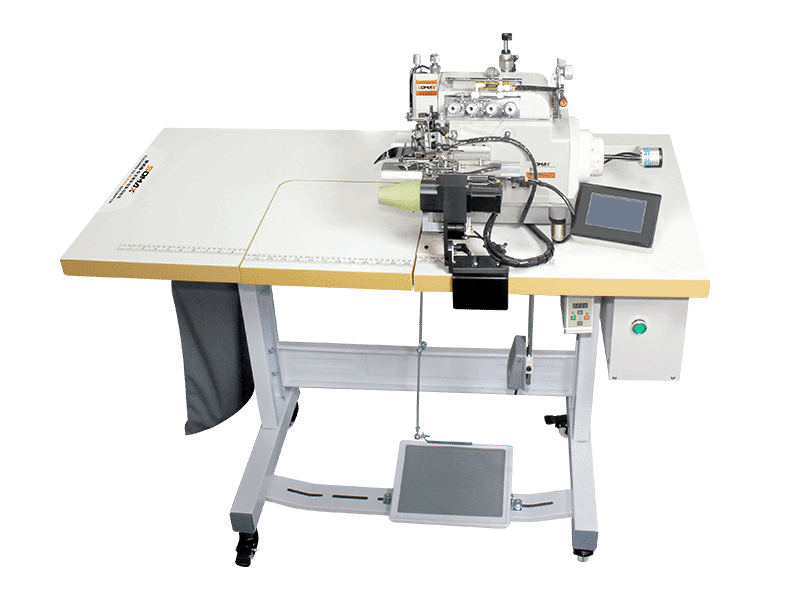

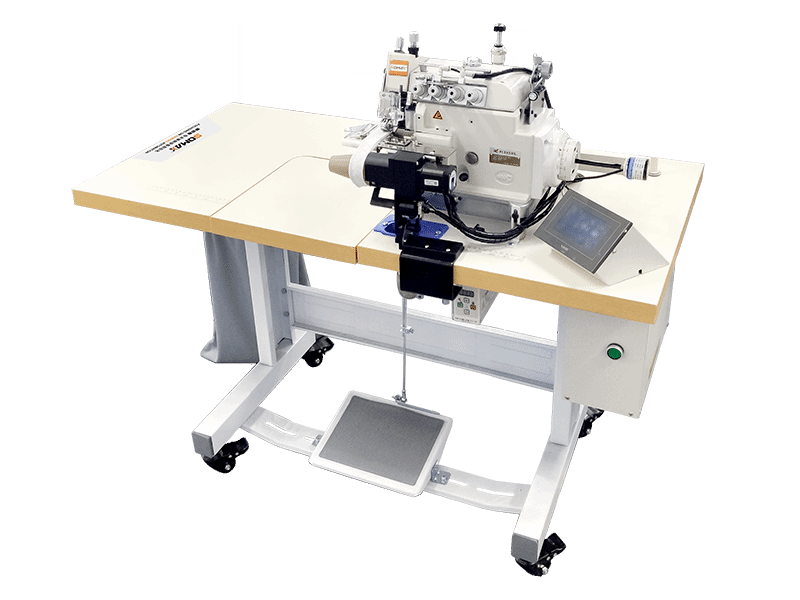

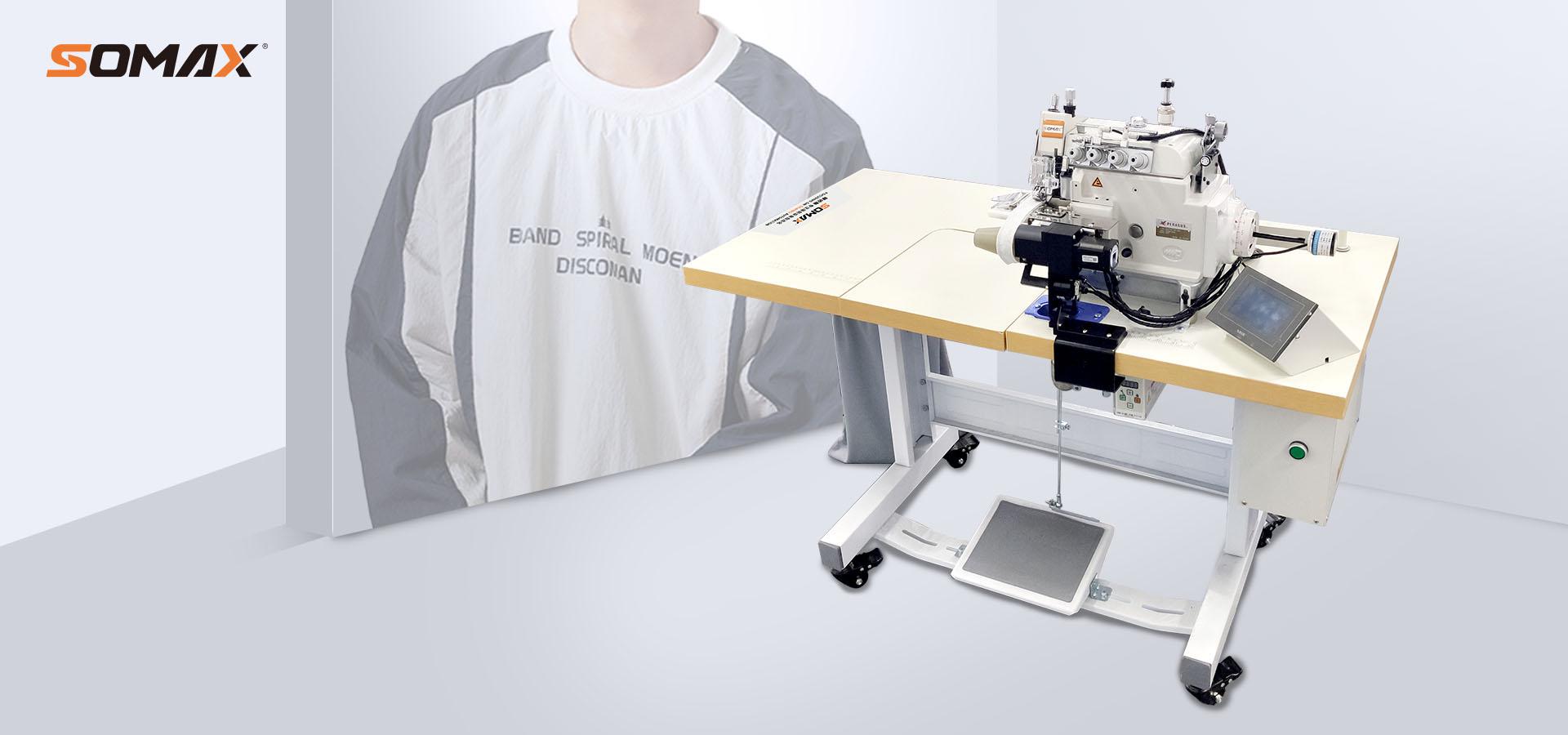

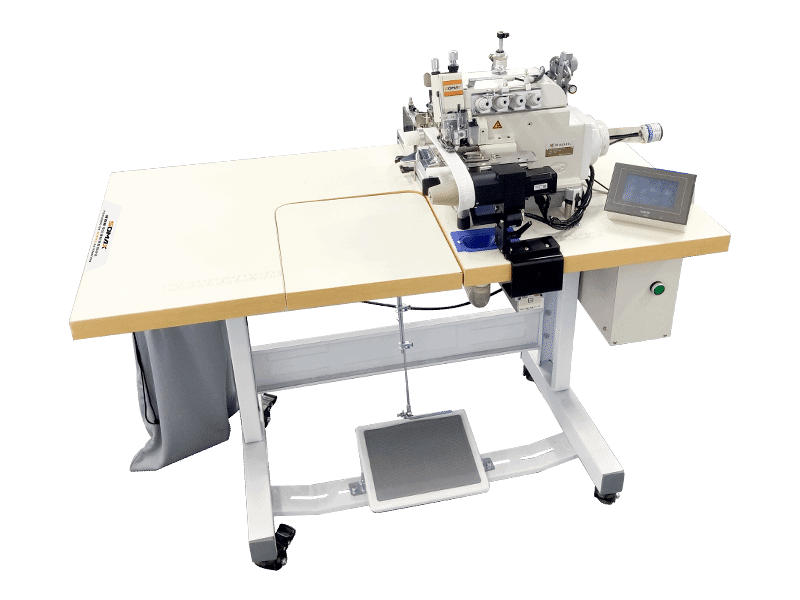

AUTO COLLAR ATTACHING MACHINE

One machine with multiple functions

Buying points

1. Auto neck joining with seam joints positioning.

2. Free Skilled Operators.

3. 50% Efficiency Increased.

4. 1.45m Max Waist Size(Optional).

Application

T-shirt round neck, elastic belt waist, threaded products round waist Elastic band, foot and cuff, thread wrapped with rubber band.

Product details

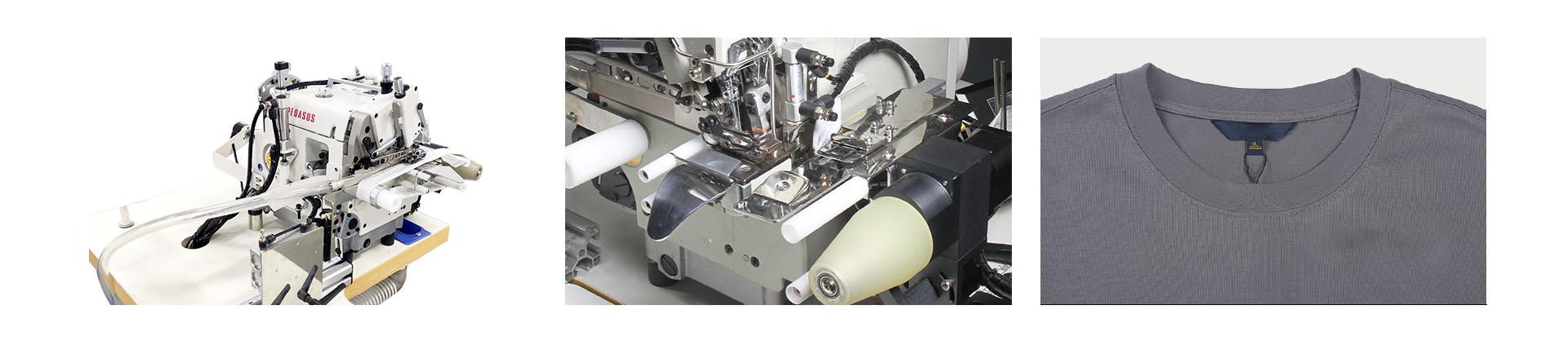

High stitching quality
Automatic Round Collar Tshirt Overlock Attachment Machine with top feeding ensures that the upper and lower layers of the material will not deform.
Join positioning and binding
Neck joining machine with auto join positioning and binding device .It can increase the output by 50% and improve the product quality.
Easy operation
Highly intergrately Somax automation construction enables easy operation, free of skilled

high Production
As an auto sewing machine, the capacity can be achieved 2400pcs/10hrs for the collar binding process.

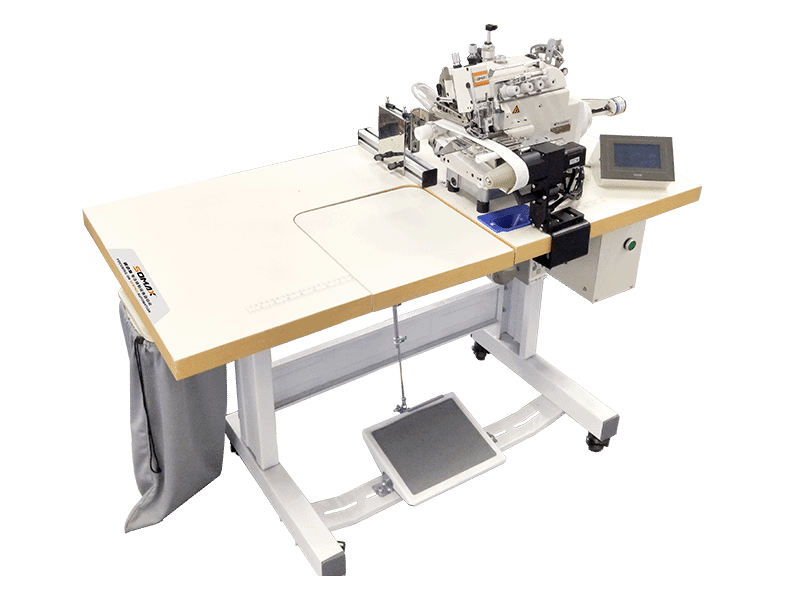

Optional 1.45m Max Waist Size Extension Roller

Optional head
SiRUBA 747KST	PEGASUS EXT5114	HIKARI 6914TA-04	LIJIA 8100T

Equipment parameters	SM-01B
Voltage	AC200V-240V
Barometric pressure	>0.5MPA
Sewing speed	5000-7000rpm
Neckline width	1-5cm
Sewing perimeter	20-140cm
Yield（secs/pc）	10
Net weight	80 kg
Gross weight	136.5 kg
Package size	1280(Length) x780(Width) x1365Height)mm
