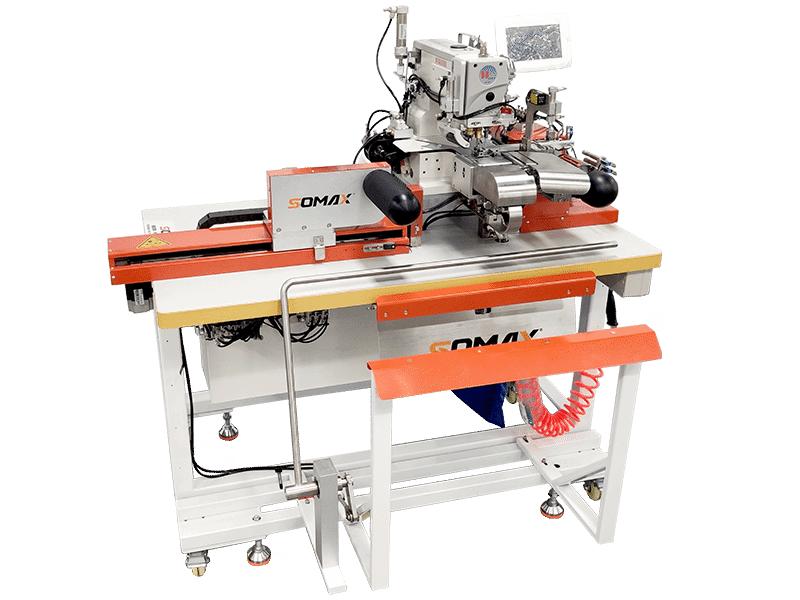

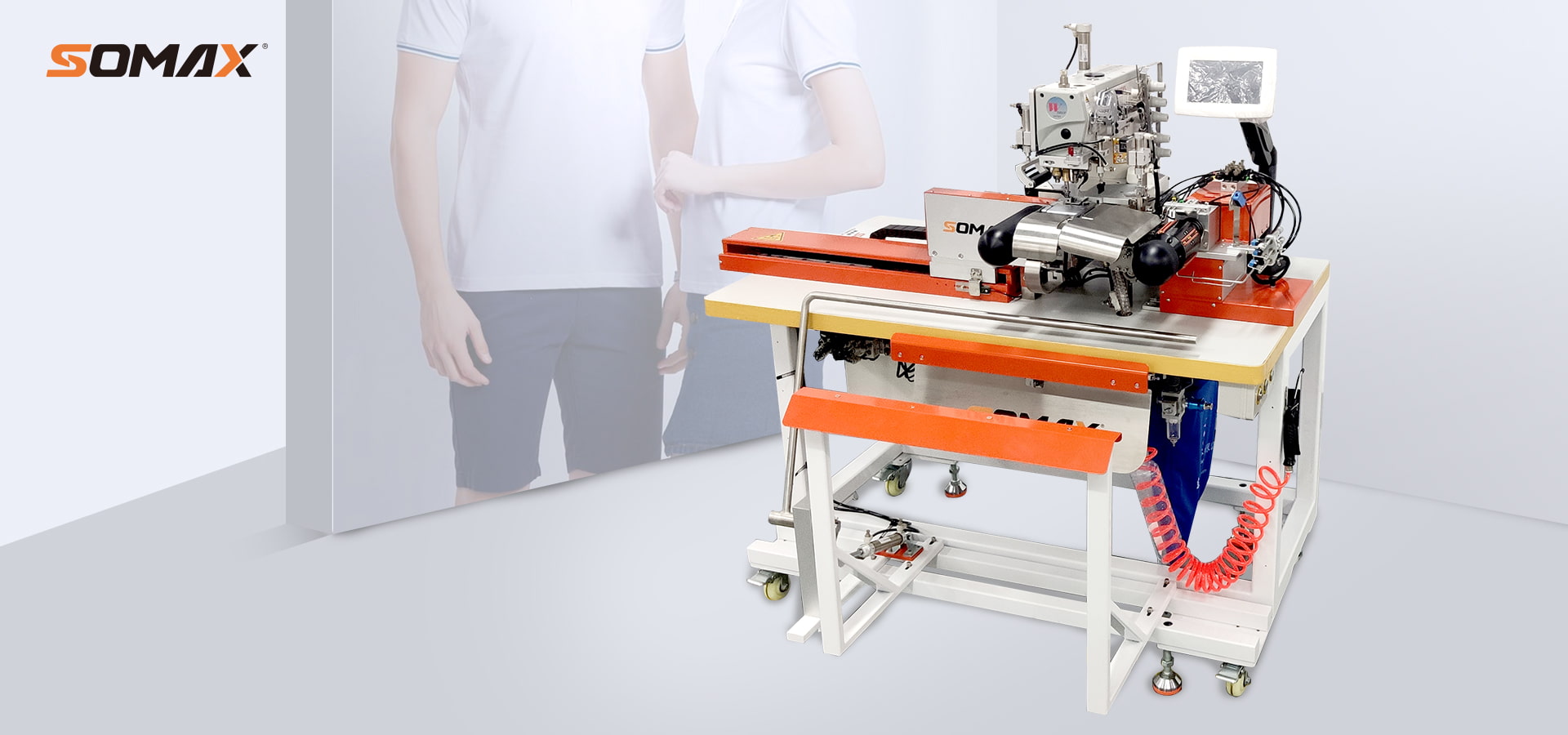

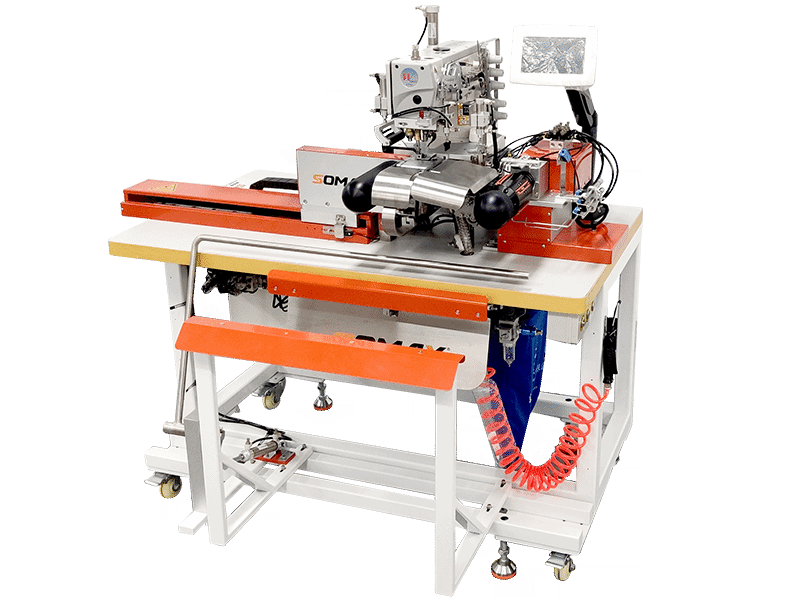

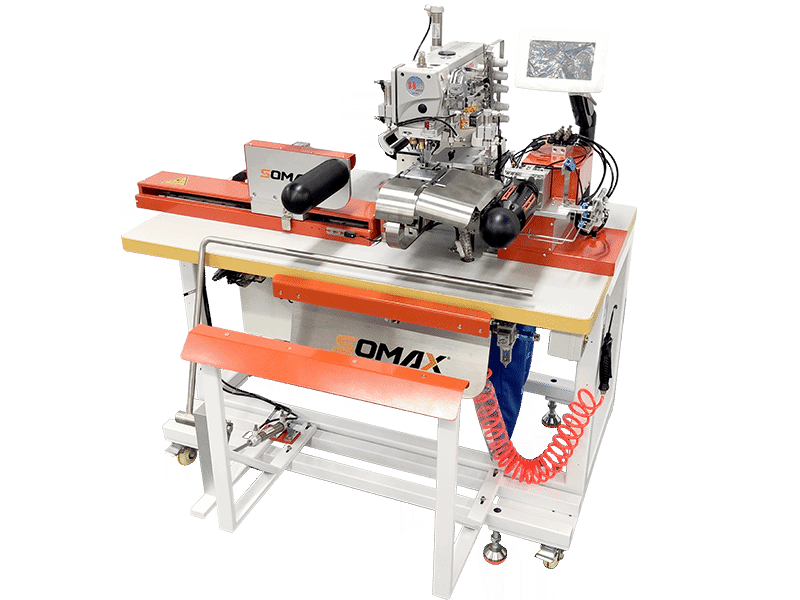

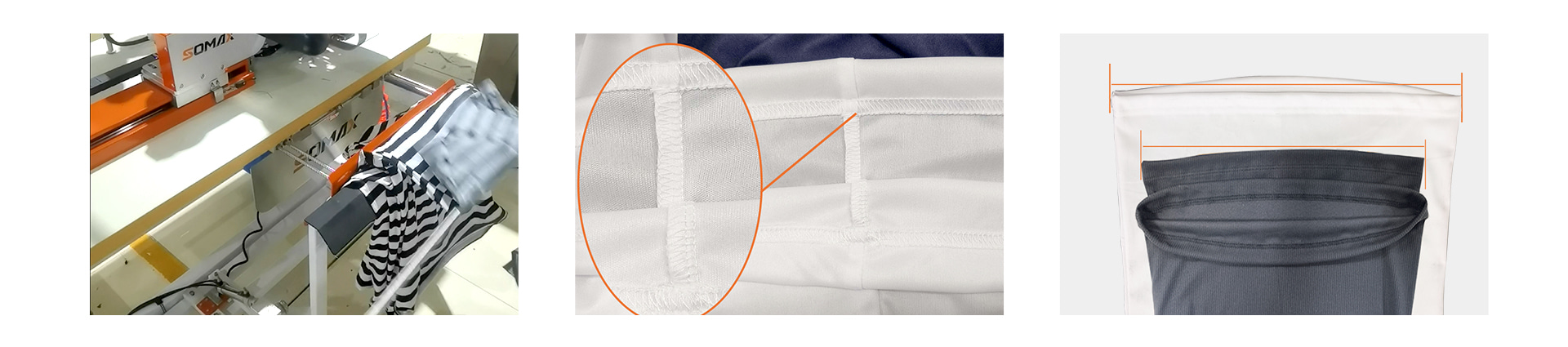

SM-07A Circular Bottom Hemming Machine AppliesToThe Bottom Hemming Process of T-shirts and polo shirts。 With moer than 10 years of somax automation experience accumulation, this model has been updated and improved to the 3rd generation. With fucntion of autotion size recogonition and seam joints turning and stacking as welll the fabric edge cutting and lint suction, SM-07A helps efficiency increasing by enabling two machines operated by one man with output of 3600 pcs in 10hours for the circular bottom hemming process
Item No :
SM-07ASewing perimeter :
76-160cmWidth of sewing hem :
1.5-2.7cmYield(secs/pc) :
3-4
Equipment parameters
|
SM-07A
|
Voltage
|
AC220V
|
Pressure
|
>0.6MPA
|
Power
|
600W
|
Head speed
|
3500-4500 rpm
|
Width of sew Width of sewing heming hem
|
15-27 mm
|
Sewing perimeter
|
76-160 cm
|
Yield(pc / minute)
|
3-4
|
Net weight
|
215 kg |
Gross weight
|
255 kg |
Package size
|
1450(Length) x1180(Width) x1480Height)mm
|
