Automatic Neck Attach Machine

Auto Collar Attaching Machine

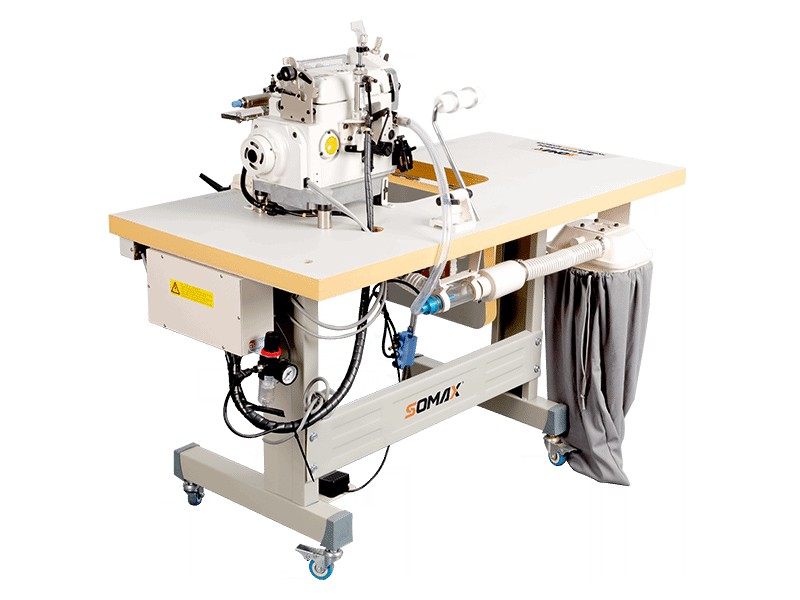

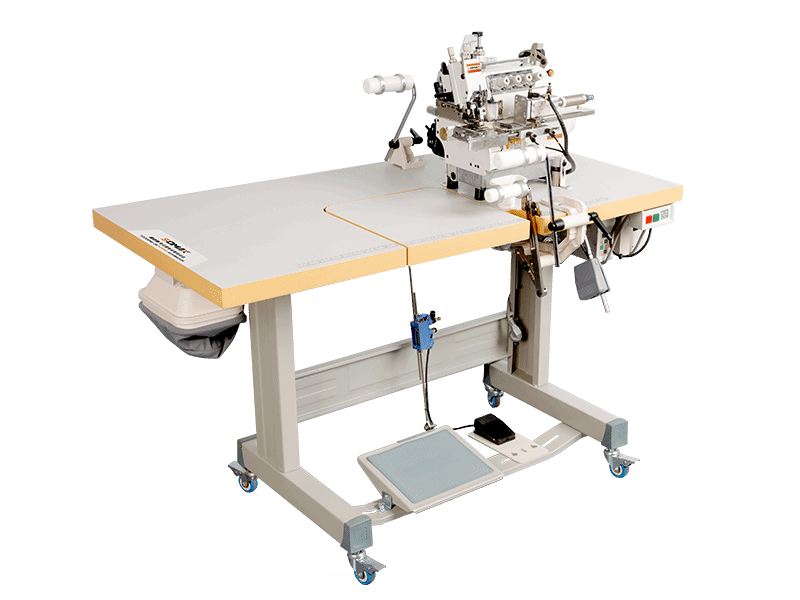

Automatic Ribbed Collar Attaching Machine is multifunctional equipment which can make for T-shirt collar attaching or Elastic Waist Band attaching on pant's waistband. The machine is equipped with top Feed Cylinder Bed Overlock head and can be optional like LIJIA ,SIRUBA ,Pegasus brand .It can increase the productivity by 50% and improve the product quality.We also have the different model with auto seam joint positioning and binding for your choice as well It can be applied to 1.45m perimeter size waist with additional roller for attaching elastic band on pant's waistband.

Item No :
SM-01
Sewing perimeter :
20-140cm
Neckline width :
1-5cm
Yield（secs/pc） :
10

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

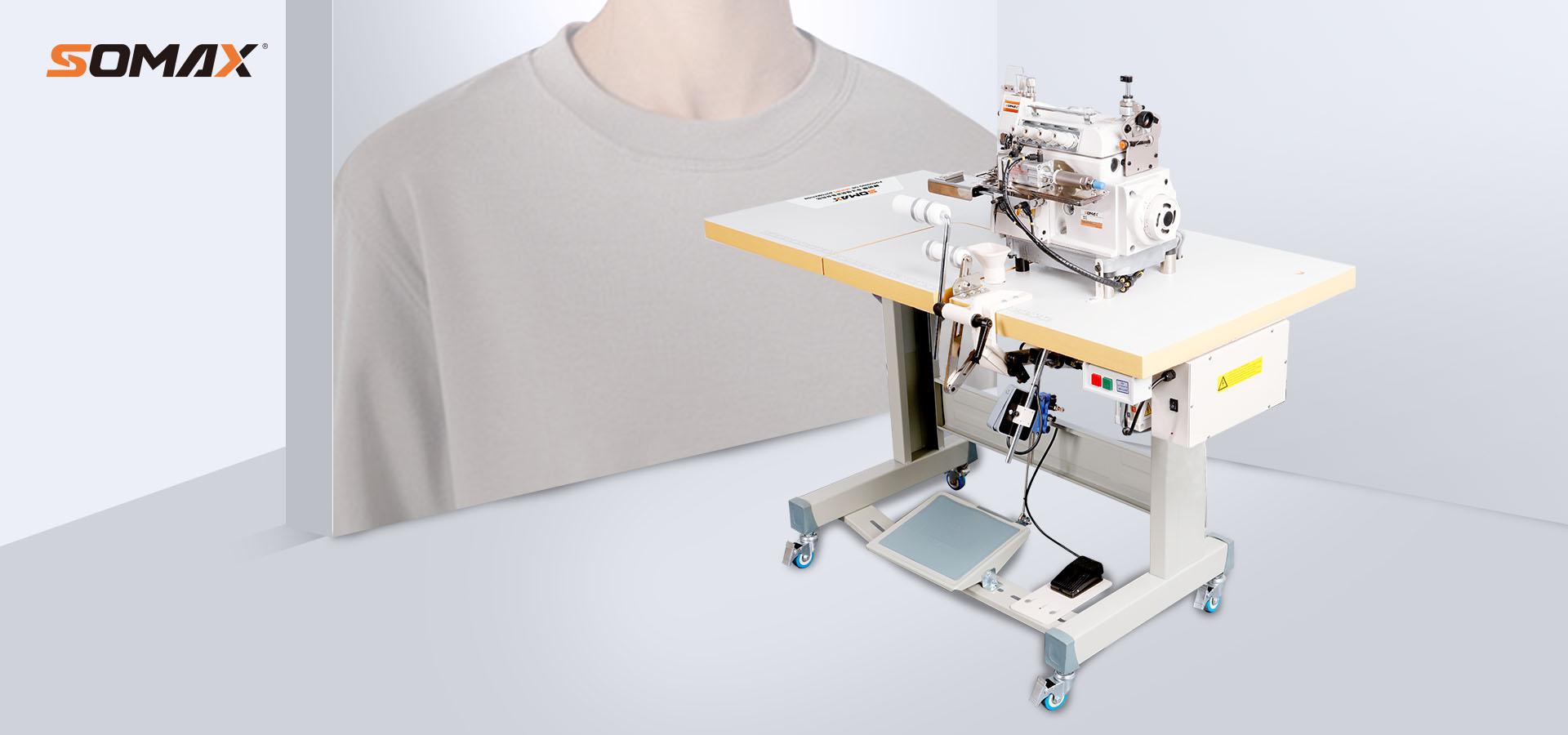

AUTO COLLAR ATTACHING MACHINE

One machine with multiple functions

Buying points

1. Easy to operate, free of skilled operators.

2. It can increase the output by 50% and improve the product quality.

3. Multifunctional equipment, one machine with multiple functions.

4. It can be applied to 1.45m perimeter size waist with additional roller.

Application

T-shirt round neck, elastic belt waist, threaded products round waist Elastic band, foot and cuff, thread wrapped with rubber band.

Product details

Easy Operation
It is easy to operate ,no need the skilled operator.

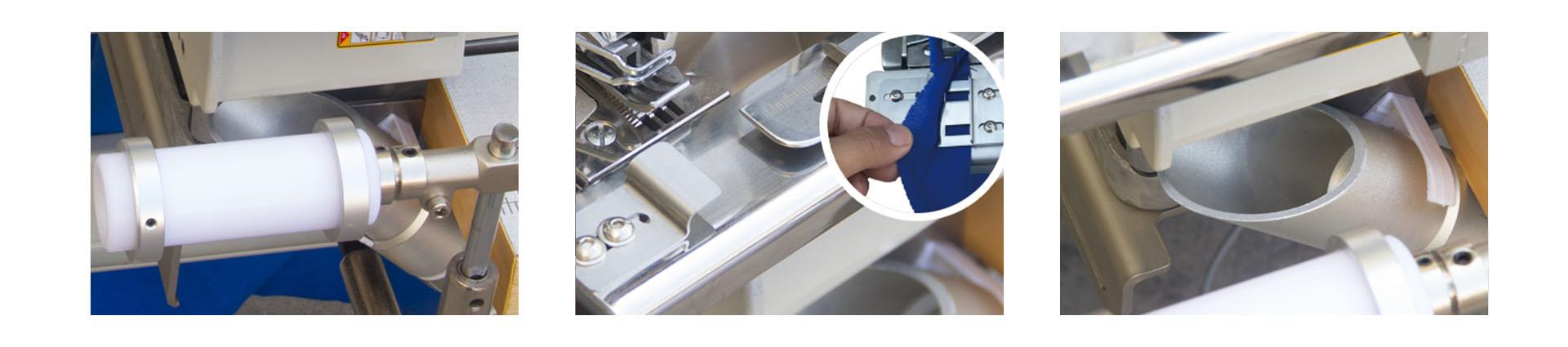

lt is with automatic trimmer device and pneumatic suction device,with Pneumatic extension roller for easy feeding
High Quality

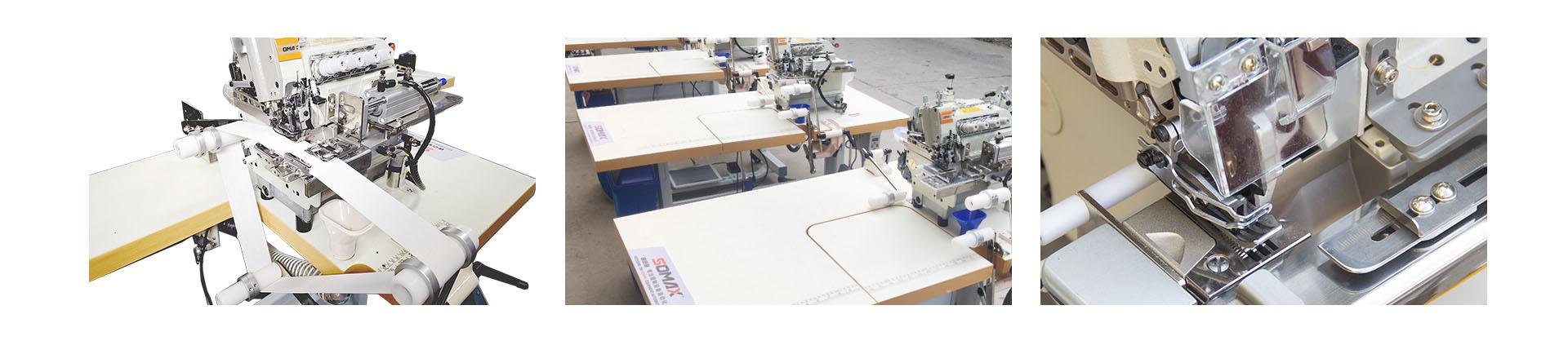

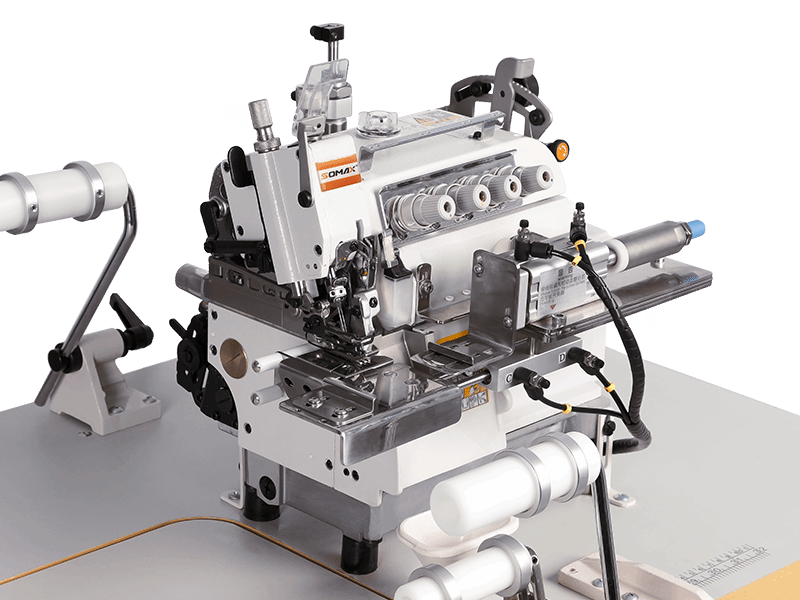

With top feed overlock machine head maintains the high stitching quality of neck joining

With patented collar fixing device for unify the width and aligning the edges
High Efficiency
Efficiency : 1pce 10sec for 50cm perimeter

Wide application
This machine can be applied not only the Automatic Collar Attach but also the Sportpants Elastic Waist Band attaching
Optional

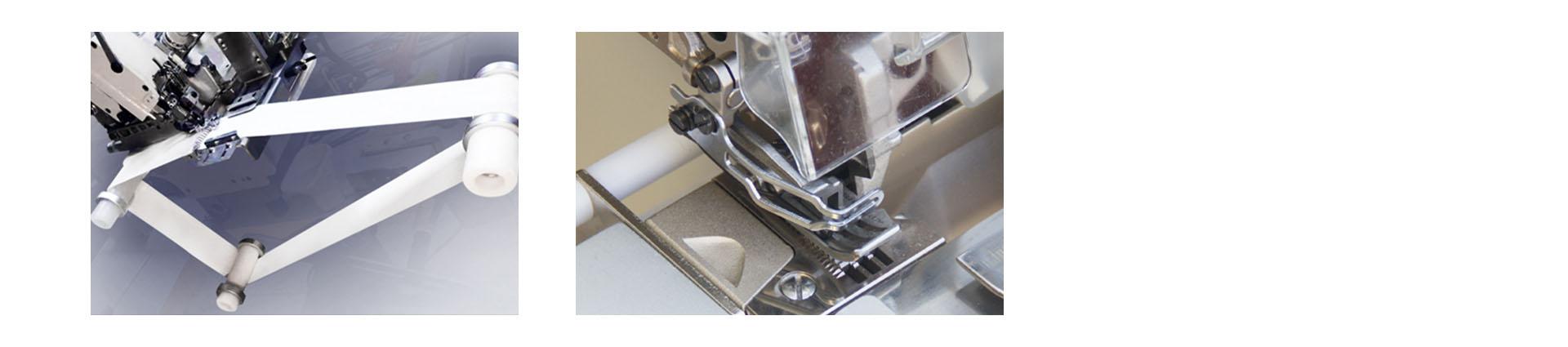

Optional 1.45m Max Waist Size Extension Roller.

Optional head
SiRUBA 747KST	PEGASUS EXT5114	HIKARI 6914TA-04	LIJIA 8100T

Equipment parameters	SM-01
Voltage	AC200V-240V
Barometric pressure	>0.45MPA
Sewing speed	5000-7000rpm
Neckline width	1-5cm
Sewing perimeter	20-140cm
Yield（secs/pc）	10
Net weight	94.2 kg
Gross weight	136.5 kg
Package size	1310(Length) x750(Width) x1360Height)mm

Hot Tags : T-shirt collar attaching machine Automatic Collar Attach sewing machine Automatic Ribbed Collar Attaching Machine T-shirt Neck Attaching machine Elastic Waist Band attaching machine somax Neck joining Machine

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Auto Collar Attaching Machine

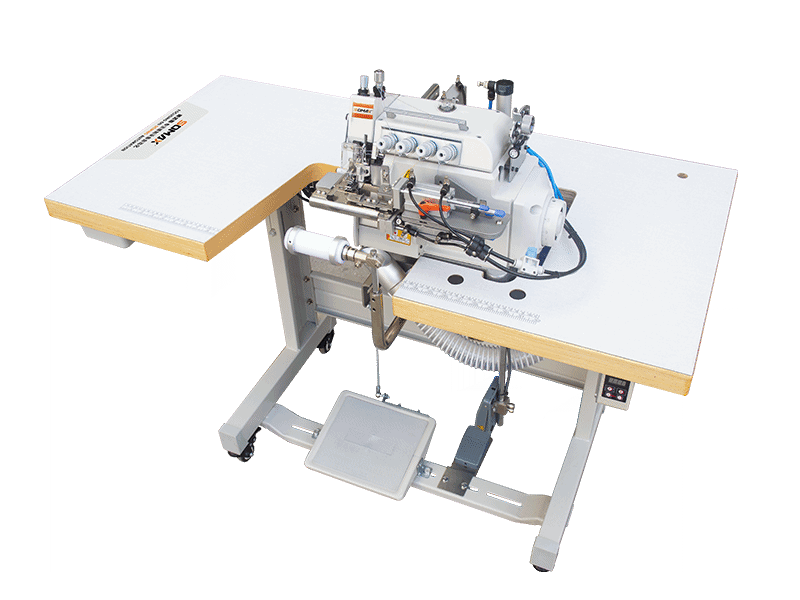

Automatic Round Collar Tshirt Overlock Attaching Machine
