Pocket Attaching Machine

Auto Thick Fabric Pocket Setter

Auto Thick Fabric Pocket Setter

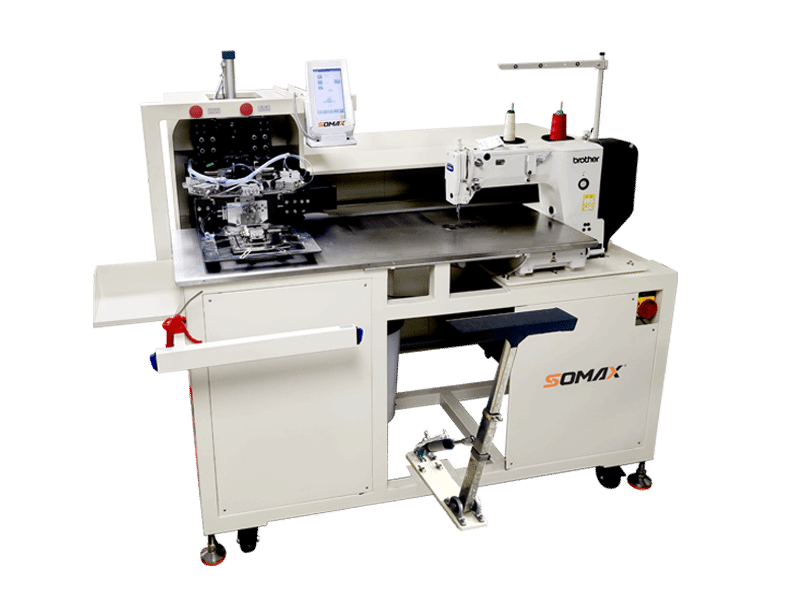

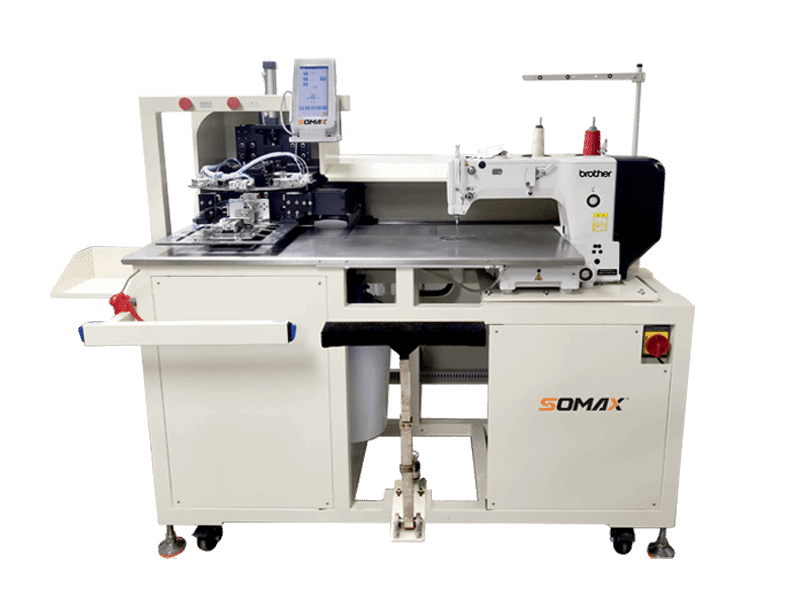

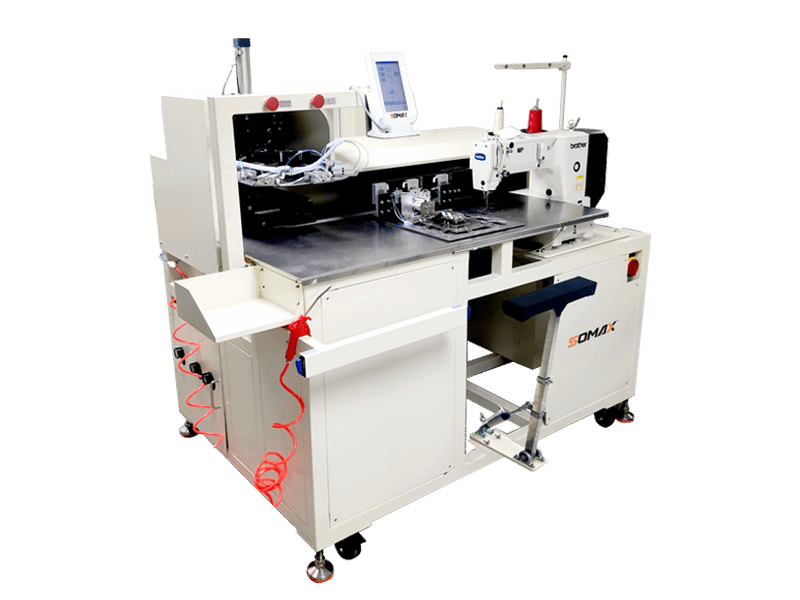

SM-19P is automatic sewing machine for various thick fabric pocket attaching, such as jeans pocket, denim pocket, coin pocket, coat pocket etc.It offers easy operation and high efficiency, ensuring quick and consistent pocket sewing.With automatic pocket folding, positioning, sewing, collection and free ironing, it also enhances quality control.

Item No :
SM-19P
Max stitch distance :
0.1-12.7mm
Sewing range :
65x65-250x250mm
Yield（secs/pc） :
10

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

AUTO POCKET SETTER

High efficiency and quality

Buying points

1.With Brother BAS-311HN machine head,this strong model is for heavy materials like jean pocket,or heavy twill denim material

2.Adjustable vacuum positioning system,check materials system are now standard configuration.Automatic fold,feed,stitching,stacker,and automatic thread breakage detection

3.New feature is electronic thread tension adjustment,for different section,operators now can set different sewing thread tension as you like

4.Efficiency for normal pocket:5 pieces per minute,120 pairs per hour

5.Plug and play jigs are standard configuration now,this allows operators to change new jigs in 5 minutes to start a new pattern production

Application

Various pocket sticking techniques for medium and thick fabrics such as clothes, trousers and denim

Product details

Easy Operation
It is an full automatic sewing machine with patented fabric edge control technology, automatic size control and position, auto thread trimming and waste collection.
High Stitching Quality
Equipped with PEGASUS EXT5100 head, maintains the high stitching quality.
High Efficiency
One worker can handle two sets,10s/pc/set

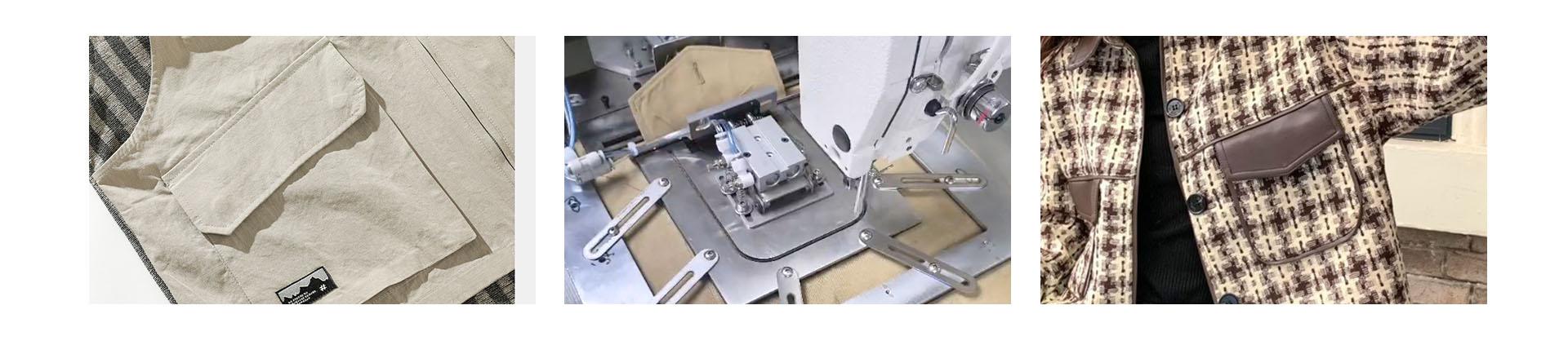

Option

Best selling for 5 years Partner:ADIDAS;FILA ETC.
Auto Accordion Pocket& 3D Pocket.
Best selling for 5 years Partner:ADIDAS;FILA ETC.

Equipment parameters	SM-19P
Voltage	AC220V
Pressure	>0.5MPA
Max Sewing Speed	3000 rpm
Sewing Range	65x65-250x250
Max stitch distance	0.1-12.7mm
Yield（pc / minute）	10
Net weight	440 kg
Gross weight	550 kg
Package size	1840(Length) x1640(Width) x1790Height)mm
