Auto Rib Cuff Attaching Machine

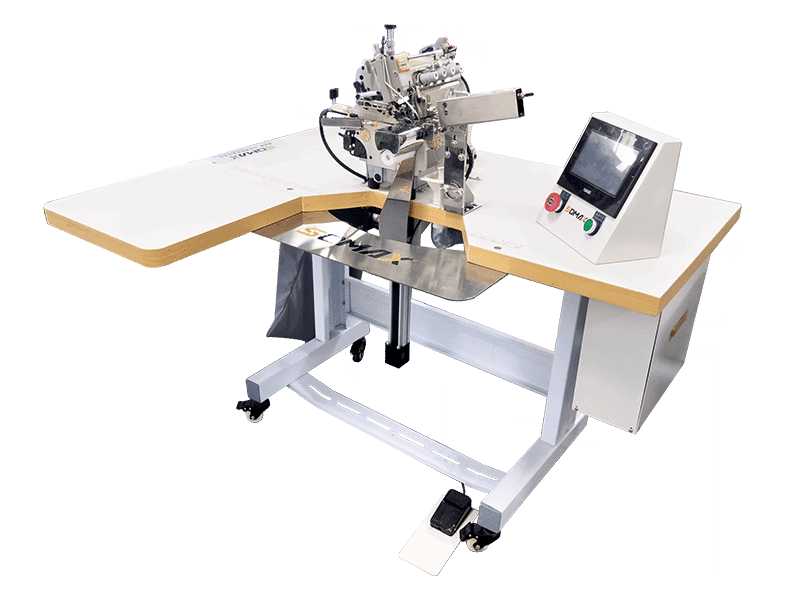

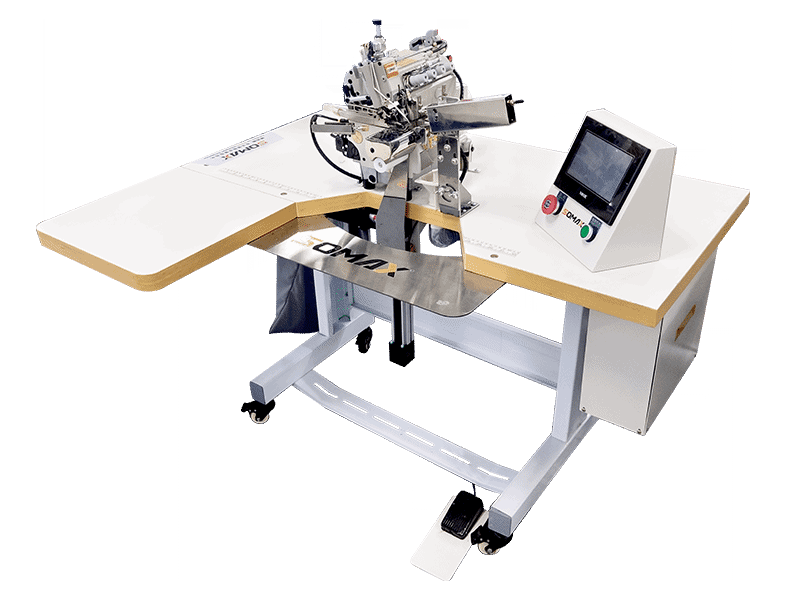

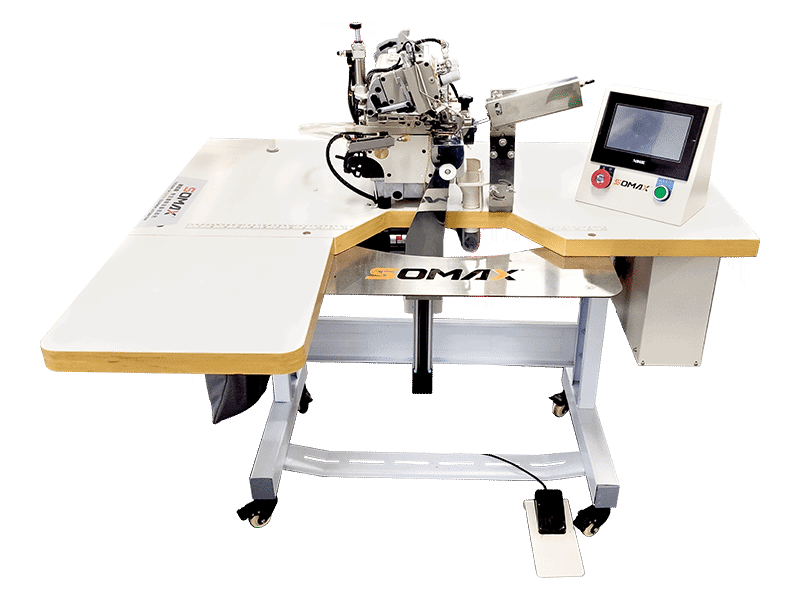

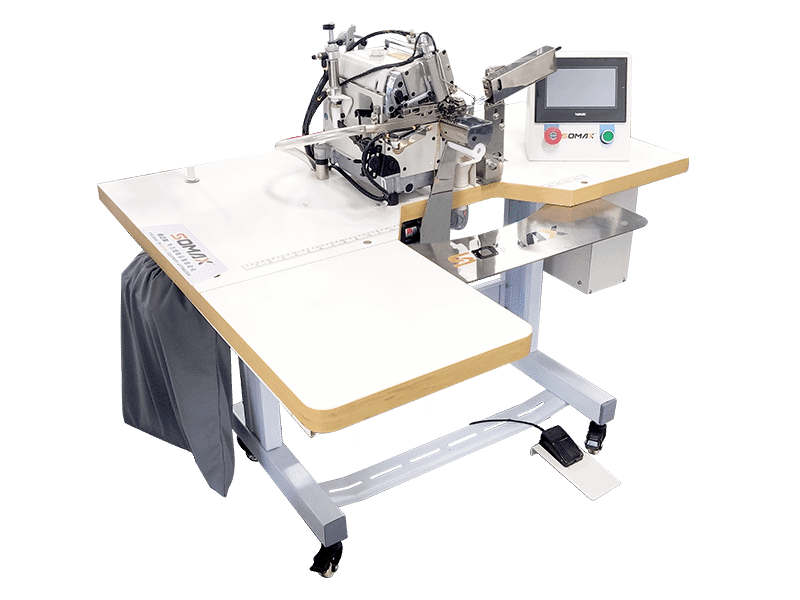

 Auto rib cuff attaching machine  was invented since 2019 year and improved to the 3rd generation with the new bed design to make operation easier, it is application for the rib cuff attaching , hoodie ,and knitting up and bottom and thermal underwear as well.It’s equipped with top feed over lock head which make more even stitches and has patented seaming joint turning functional design for the feeding & fabric loading easier.It is automatic sewing and automatic thread trimming machine,  also we adopt the motor control size adjustment which is more precise.The different machine head can be optional .

  • Item No :

    SM-02
  • Sewing perimeter :

    16-32cm
  • Neckline width :

    3.5-8cm
  • Yield(secs/pc) :

    240-350
  • Product Details

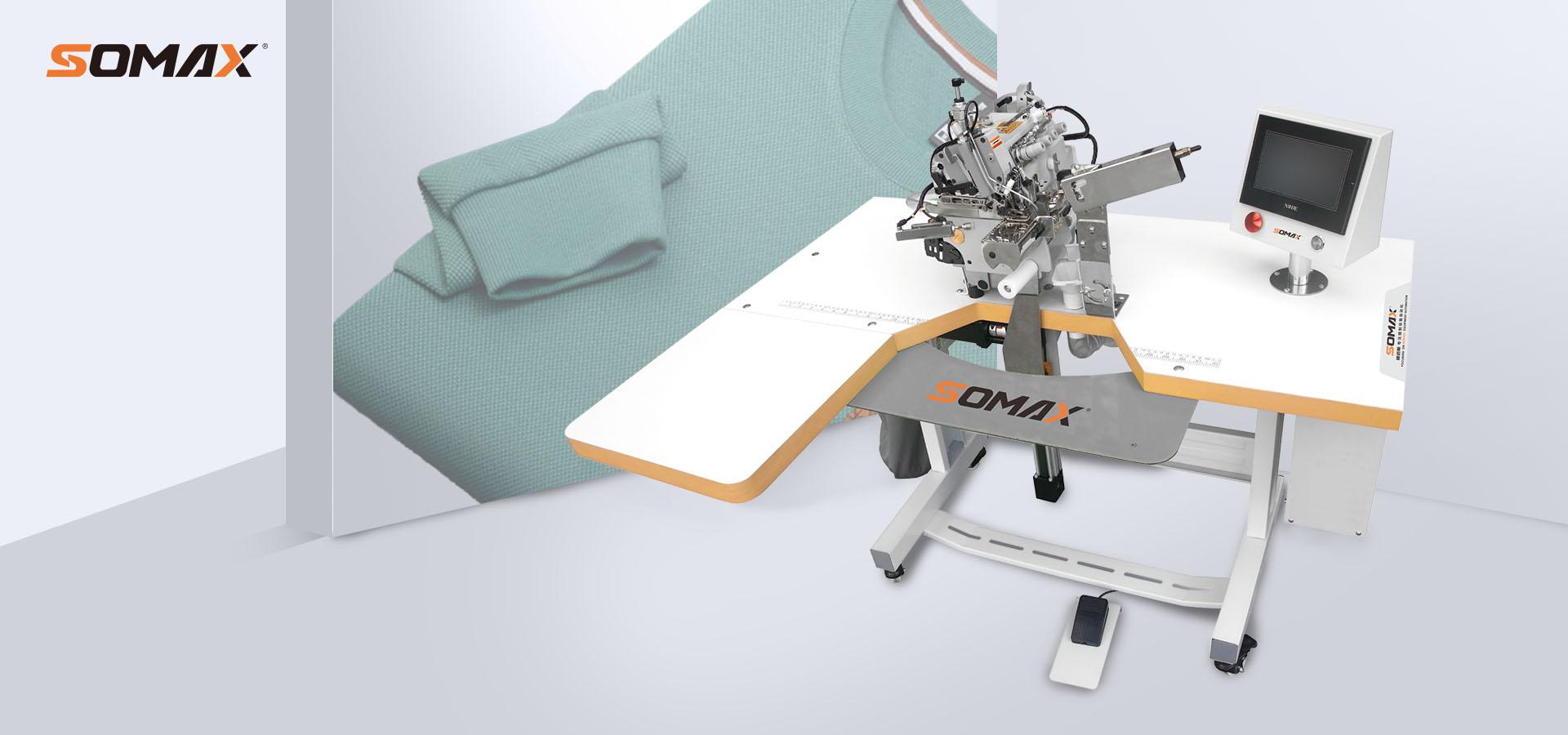

AUTO RIB CUFF ATTACHING MACHINE

New generation new performance


Buying points
1. Auto sewing and thread trimming, easy operation.
2.Seaming joints turning function is available.
3.Thread tails remainings can be controlled within 0.5cm.
4.Right and left cuff cycling sewing.
5.Motor-controlled range adjusting , which is more precise.
6.Top feed overlock machine head, more even stitches and finishing edges



Application

Knitted suits, knitted up and bottoms, hooded,thermal underwear, kids wear, etc.



Product details

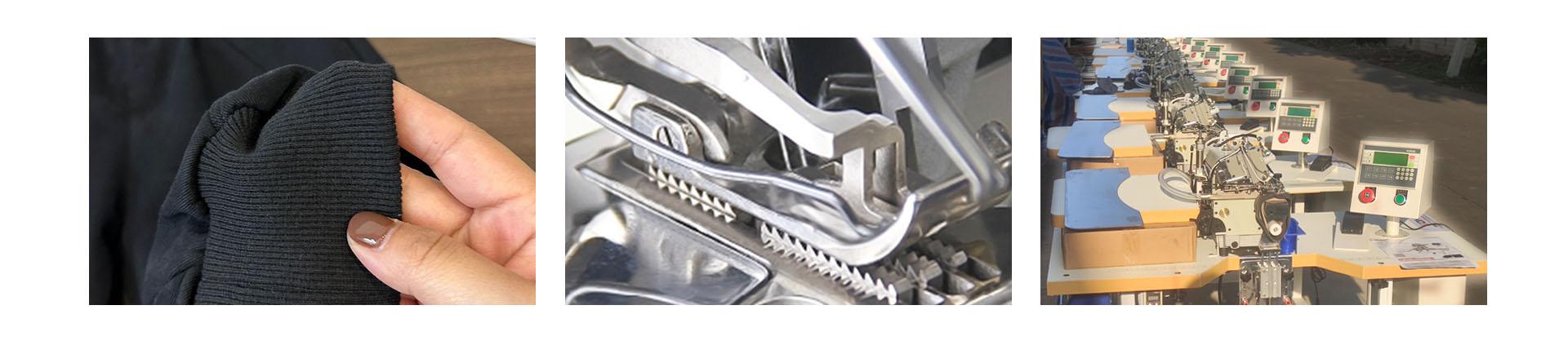

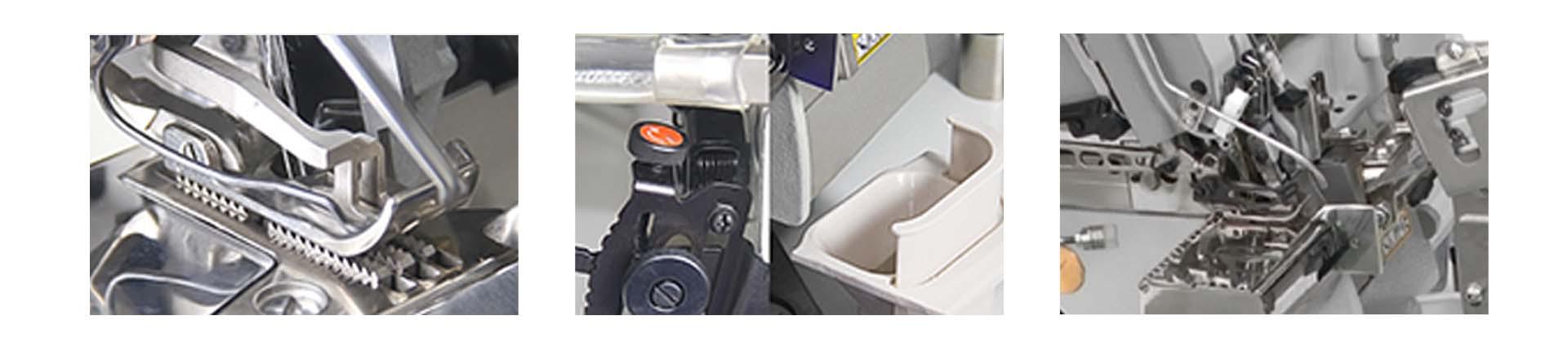

    • Easy Operation
      Easy operation with nice stitching.
      Automatic attaching the cuff device, seaming joints turning functions is available .
      Multiple sizes can be set into panel and the size and style can be directly switched easier .

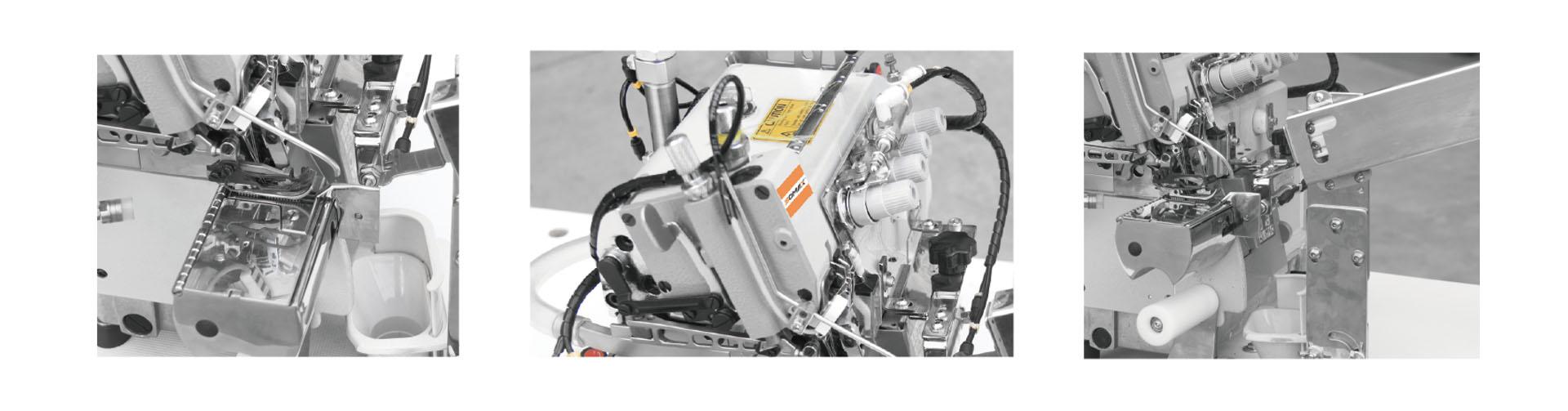

    • High Quality
      Edge guiding and lifting devices ensure perfect alignment.
      The threads are trimmed automatically which can be control the tail remain within 0.4cm.
      The right and left cuff cycling stitching.
      With Step motor control the extension size more precise than pneumatic design.

    • Wide Application
      It is applied to the hoodie rib cuff attach ,Rib cuff overlock attaching ,Elastic cuff attaching for the Sportswear, Protective and Surgical gown etc.

    • High Efficiency
      Efficiency : 6-9second 1pce  (240-350pcs/1hr)






Equipment parameters
SM-02
Voltage AC220V-240V
Pressure >0.45MPA
Power
400W-550W
Sewing perimeter
16-32cm
Neckline width
3.5-8cm
 Yield(secs/pc)
240-350
Net weight
110 kg
Gross weight
164 kg
Package size
1230(Length) x900(Width) x1350Height)mm
