Auto Polo Shirts Buttoning Button Feeding Stitching Machine

Auto Polo Shirts Buttoning Button Feeding Stitching Machine

SOMAX automation company ispecialized in sewing automation over 20 years.SM-05BA is an automatic sewing machine,which is for polo shirts button stitching.It can stitch buttons strong and beautiful.It's programmable sewing machine, used on corporate wear,office wear and work wear making.It's becoming popular uniform sewing equipment for garment and apparel manufacturers

Item No :
SM-05BA
Button size :
9-28mm
Maximum speed :
2700rpm
Sewing range :
300mm

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

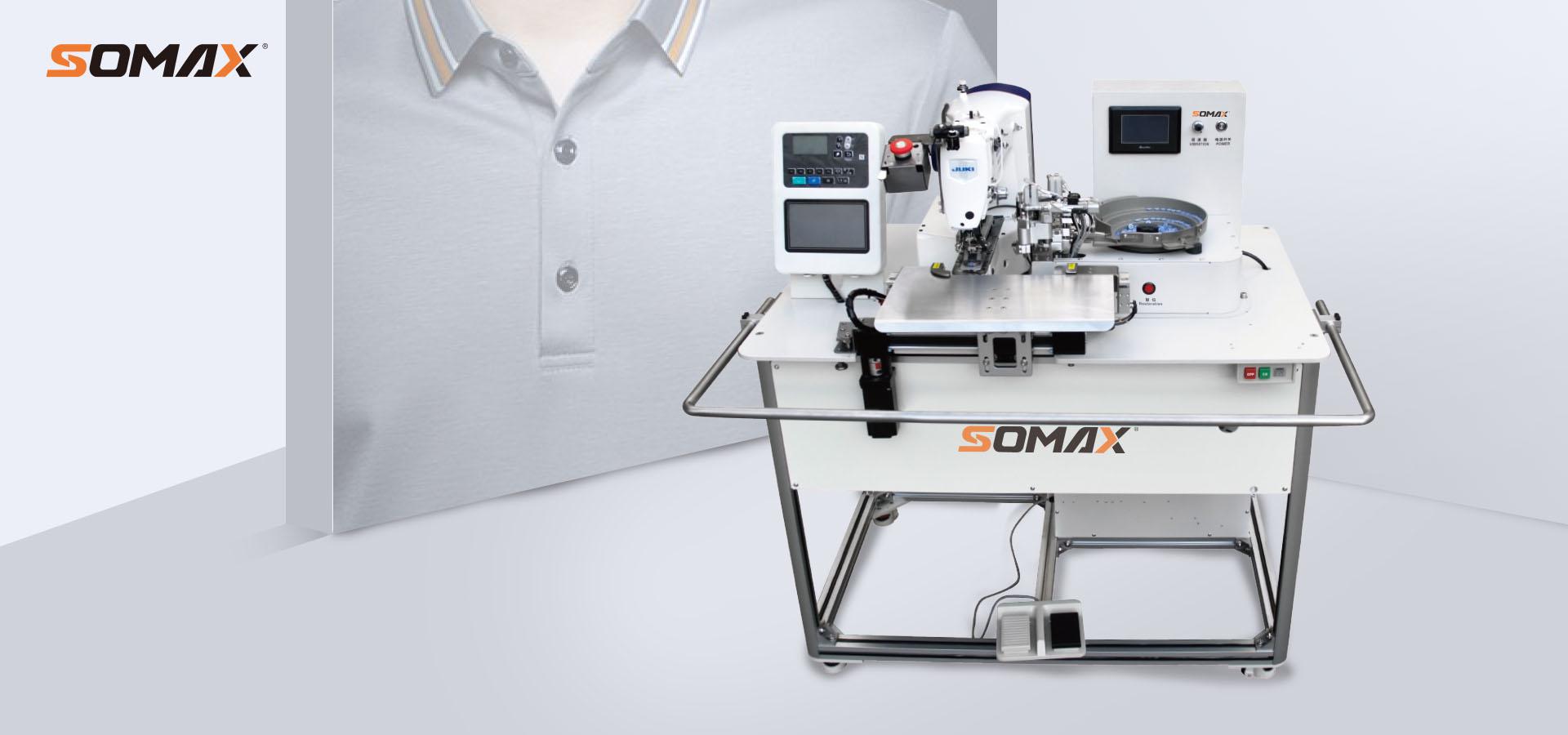

AUTO POLO SHIRTS BUTTONING MACHINE

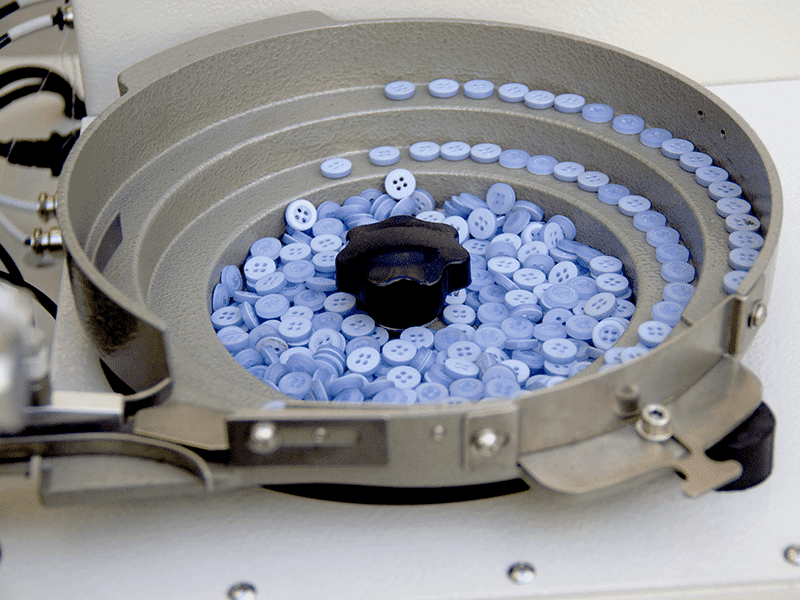

Auto button feeding and attaching

Buying points

1. The number of buttons can be set from 1 to 5 pieces.

2. The distance between buttons can be set within 20mm-100mm.

3. Buttons position anti-move function.

4. Safety switch function when changing bobbin case

5. Detect button up side & down side function.

6. Automatic adjustment of button size and thickness.

7. Maximum sewing speed 2700 rpm.

8. Bird’s nest prevention function.

9. Bobbin change button preset, easy change bobbin.

10. Infrared positioning function(Optional).

Application

POLO shirts and shirts button attaching

Product details

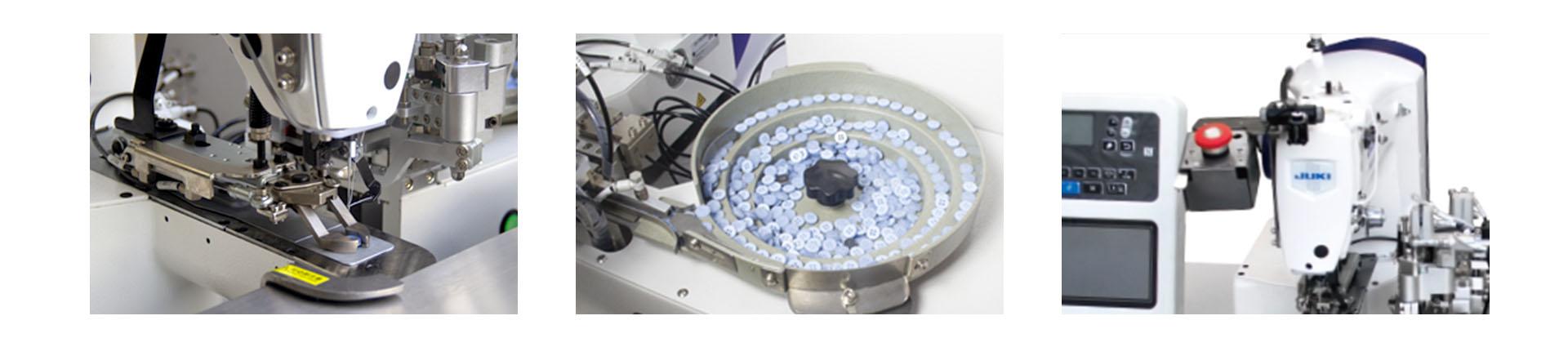

Auto button feeding and stitching
It's programmable sewing machine,robot intelligent control for different type button attach
Easy operation

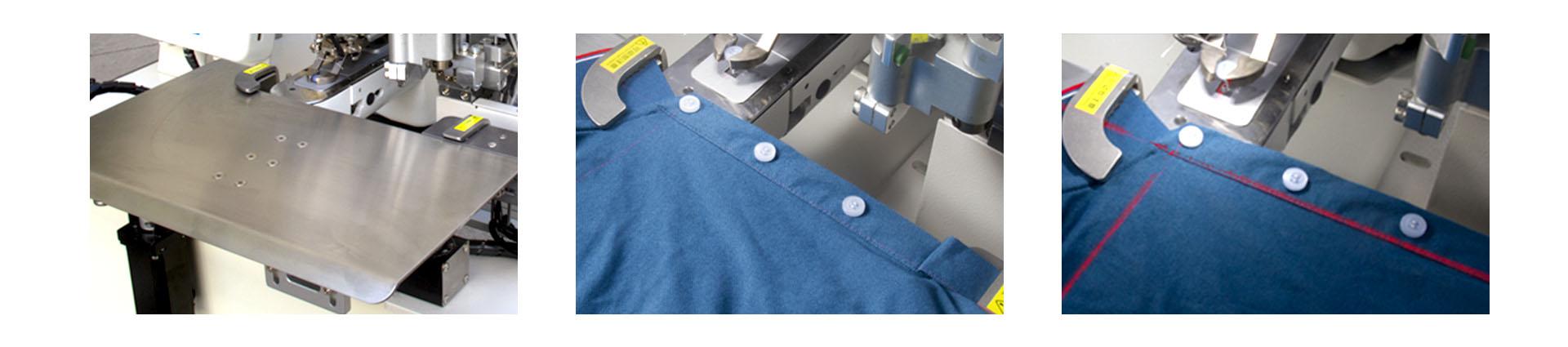

The polo shirts buttons stitching quality from 1 to 6 can be set.The distance of buttons adjust available.
Fast speed,high output,good quality

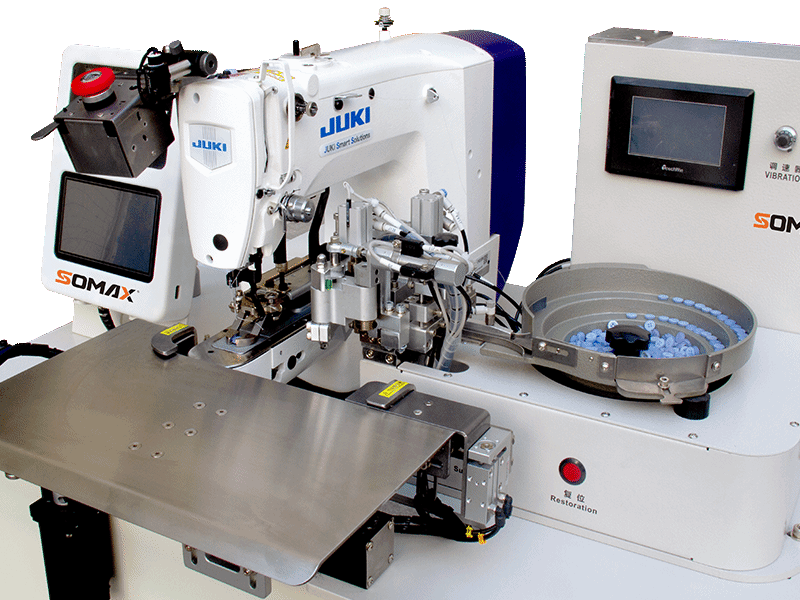

With JUKI head,patterns storage function,it runs speedy,supplys high output and ensure the quality as well.

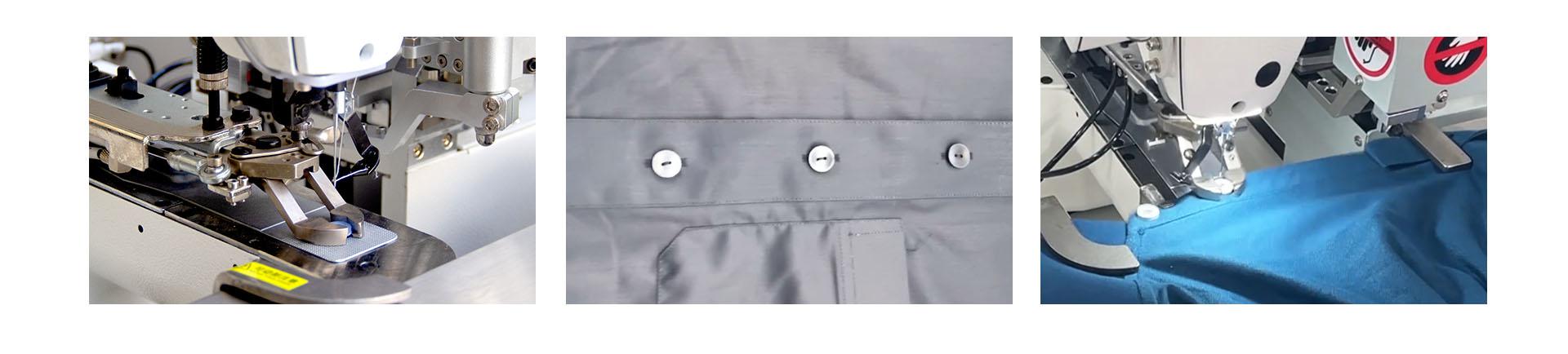

Button Size and Thickness Adjustable
SafetyIt has got much good feedback from clients,works safely and stably in garments factories.It's widely used on workwear button attaching.
Fast Bobbin Changing

Equipment parameters	SM-05BA
Voltage	AC220V-240V
Pressure	>0.5MPA
Power	1000W
Sewing speed	2700rpm
Sewing range	300mm
Button size	9-28mm
Net weight	137 kg
Gross weight	250 kg
Package size	1230(Length) x960(Width) x1460Height)mm

Hot Tags : Automatic sewing machine SOMAX automation sewing machine Uniform sewing equipment Polo shirts button stitching machine button feeder sewing machine button attaching sewing machine
